conten waste wood

The production process of demolition materials, board skins, waste building templates, and wooden pallets as pellets

The production process of wooden pallet building formwork as pellets

Capacity: 8000kg/h-12000kg/h
Raw materials: demolition materials, panels, waste building templates, wooden pallets
Application: Garbage recycling pellet.
Labor: 3-5 people.
8 tons/hour Transformer ≥ 800 kVA.
12 tons/hour Transformer ≥ 1500 kVA.
Recommended users: large wood processing plants, biomass power plants, waste disposal companies and other users.

Proccess Flow :

Crushing and crushing: Use the crushing and crushing integrated machine to crush and crush the wood with metal.
Pelleting: The crushed material enters the silo and enters the pellets through the screw dragon.
Cooling: The high temperature particles enter the cooler for cooling through the conveyor belt;
Packing: The cooled pellets enter the packing machine for packing.
Process advantages: a wide range of applicable raw materials, good particle forming effect, and relatively large profit margins.
Process disadvantages: The initial investment pressure is relatively large.Process disadvantages: Due to the shortage of raw materials, it is difficult to increase the production capacity.
Note: This process requires that the moisture content of the raw material is 10%-15%, and if the moisture is higher than this, a dryer needs to be used for drying.

Composition of Production Line equipment For Demolition Materials, Panels, Waste Building Templates, and Wooden Pallets as Pellets

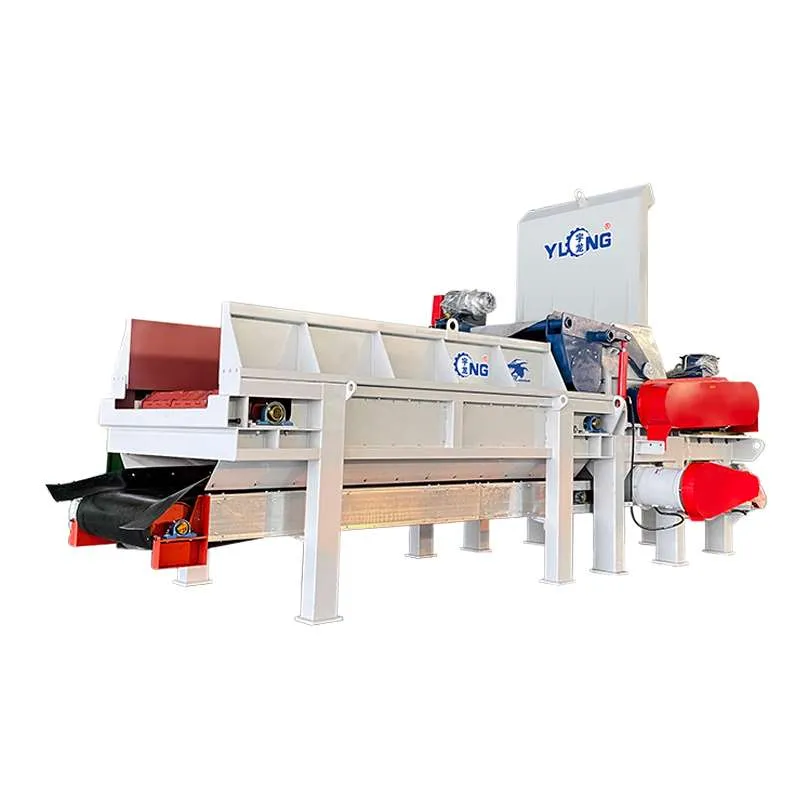

Crhusing Machine

For metal-containing wood materials, it is suitable for building templates, wooden pallets, demolition wood materials, waste wood furniture, furniture factory floor scraps and other metal-containing materials, as well as scraps, branches and logs <10cm.

8th Generation centrifugal
high-efficiency pellet machine

The 8th generation centrifugal high-efficiency pellet mill is our patented product. There are 560 models with a power of 132KW and an hourly output of 1.5-2 tons, and 850 models with a power of 250KW and a production capacity of 3-4. You can choose the device model according to your needs.

Belt Conveyor

The belt conveyor has the advantages of strong conveying capacity, long conveying distance, simple structure and easy maintenance, and can easily implement programmed control and automatic operation.

Rectangular Warehouse

The material used is thick galvanized sheet, which has high density, is not easy to deform and corrode, and has a long service life. The modular structure is used for installation, which is convenient for transportation and on-site assembly by customers; the bottom of the warehouse is equipped with a hydraulic screed device to prevent materials from bridging; the bottom is equipped with a screw conveyor and frequency conversion feeding to ensure stable feeding of the pellet machine.

Cooler

The unique vibrating mechanism is used to discharge material, which has stable operation and smooth discharge. Using the principle of counter-flow cooling, the particles are fully and uniformly cooled.

Packing Machine

Customers can choose the type of packaging scale according to their own requirements; of course, in the complete production line, they can choose the combination of large and small packaging scales.

Note : This is a set of conventional simple biomass pellet production line, we can customize different pellet production solutions for you according to different sites, raw materials, output and budget. As a leading pellet machine manufacturer in China, Yulong Machinery has rich experience and can build a unique small pellet factory for you according to the actual situation.
